Now only $13,795 plus gst
If you want a farm-hand that will pull its weight, and then some, this ATV is perfect for you.

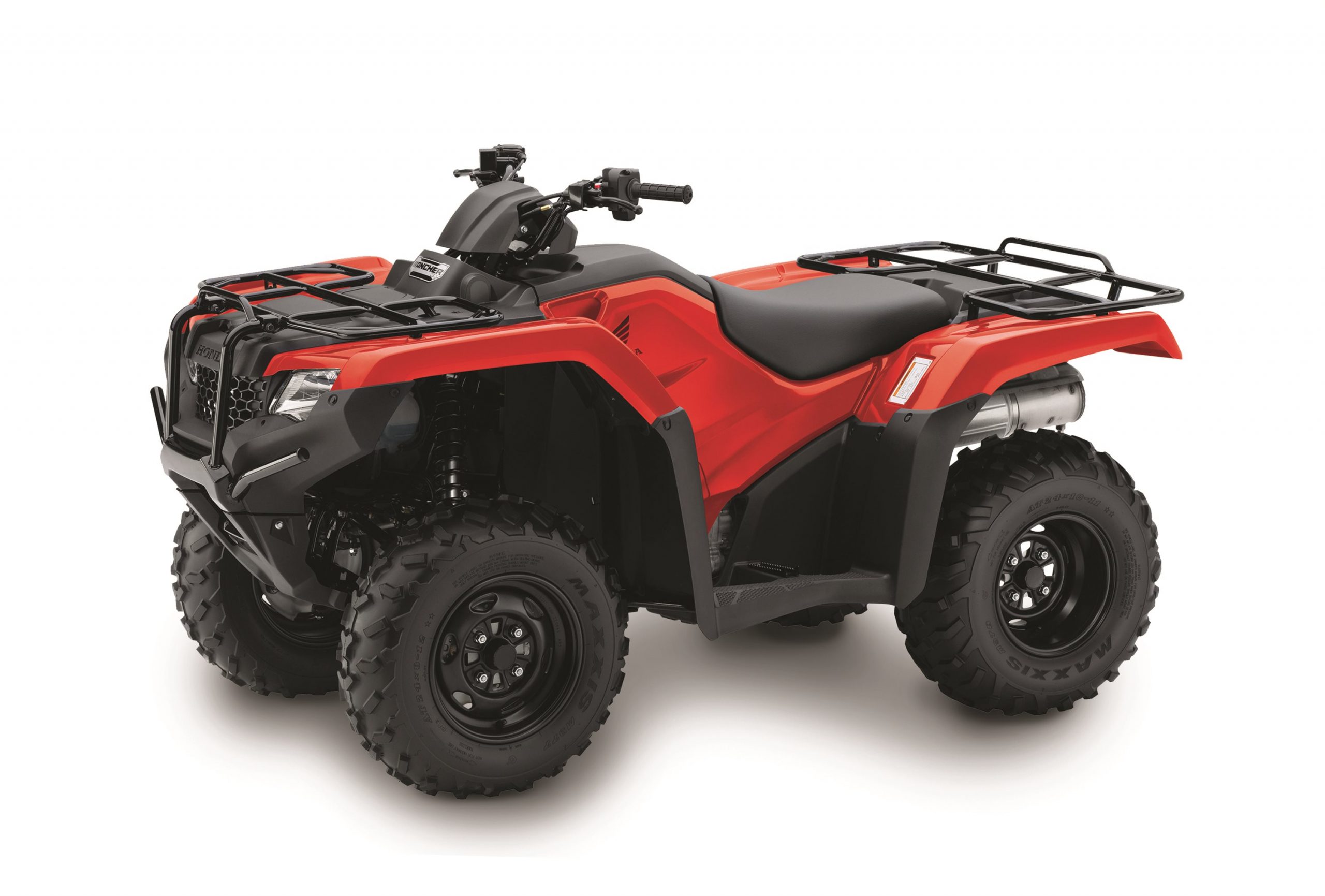

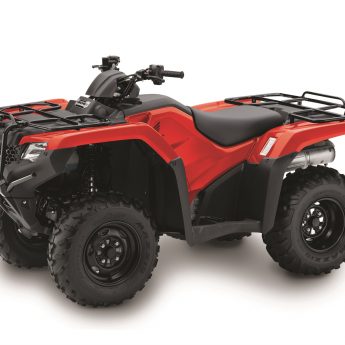

The TRX420TM1 is the larger-powered brother of the TRX250TM. A Honda through-and-through it is trusty, reliable, and a two-wheel worker that will do more than just drive your flat-terrain farm.
The big 420cc fuel-injected, OHV liquid-cooled engine boasts enough pulling power to tow a decent trailer or gallivant with a bit of gear. Its 5-speed manual transmission gives you excellent control, and the ability to ride exceptionally slow in first gear and reverse. That means you can follow your stock at their pace, or whatever pace you decide. Without a doubt this is one tough, no-frills Rancher, that will get more than just one job done.
Specifications
Engine
Engine Type
Liquid-cooled OHV longitudinally mounted single-cylinder four-stroke
CC Rating
420cc
Bore and Stroke
86.5mm x 71.5mm
Ignition
Full-transistorized type with electronic advance
Fuel System
Programmed Fuel Injection
TRANSMISSION
Starter
Electric with auxiliary recoil standard
Transmission
5-Speed with Reverse
WHEELS, SUSPENSION & BRAKES
Suspension Front
Independent double-wishbone; 170mm travel
Suspension Rear
Swingarm with single shock; 170mm travel
Brakes Front
Dual hydraulic discs
Brakes Rear
Sealed mechanical drum
Tyres Front
Maxxis 24 x 8-12
Tyres Rear
Maxxis 24 x 10-11
DIMENSIONS & WEIGHT
Wheelbase
1,268mm
Seat Height
856mm
Ground Clearance
183mm
Kerb Weight
261kg
Fuel Capacity
14.7 litres including 4.9 litres reserve
Dimensions
2,103mm(L) x 1,205mm(W) x 1,174mm(H)
Features
Digital Display
A digital display lets the rider know exactly what is happening.
Solid Bean rear Axle
Solid rear-axle design is built for durability
