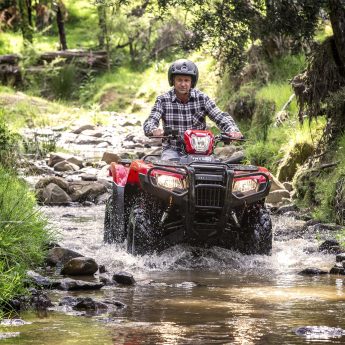

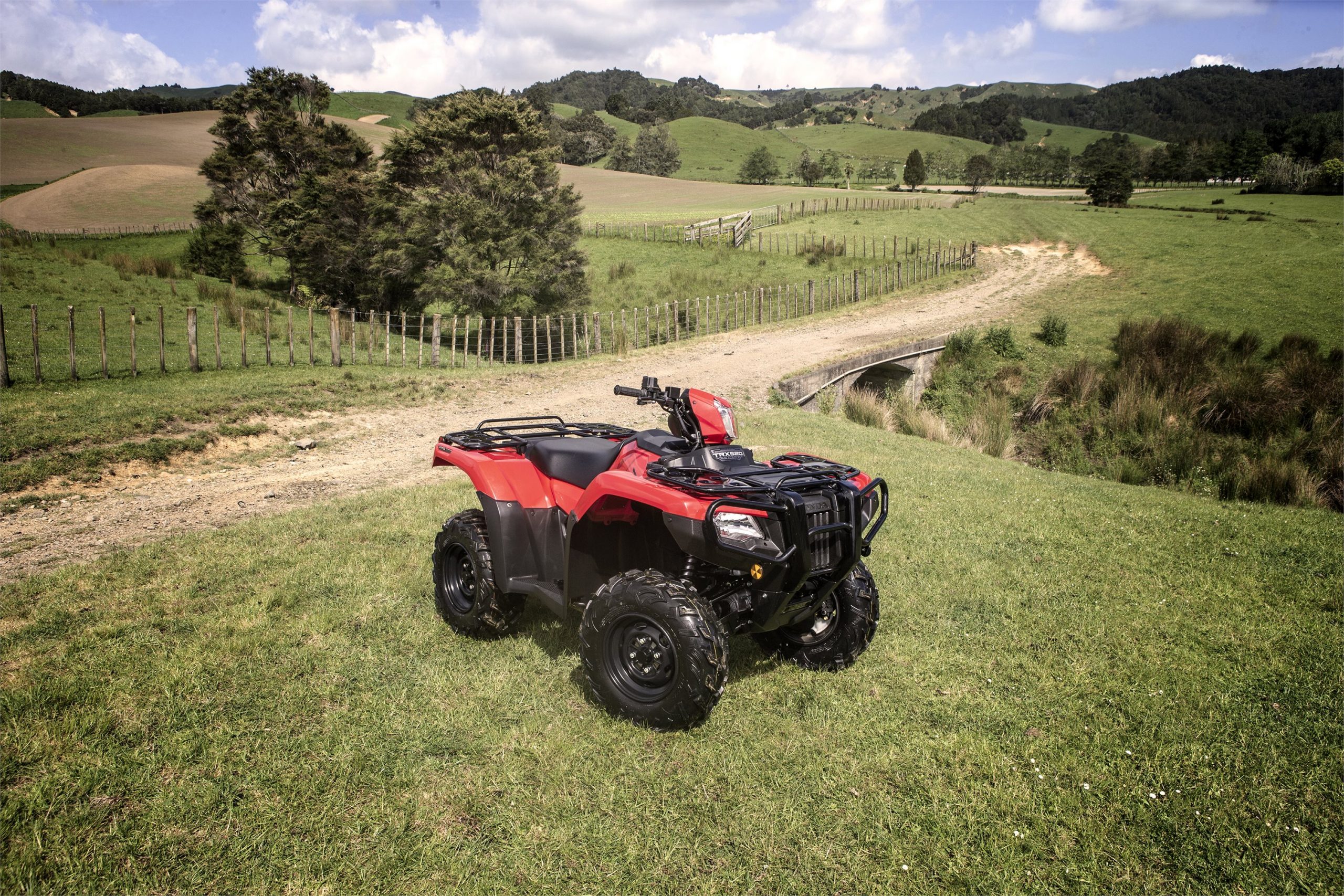

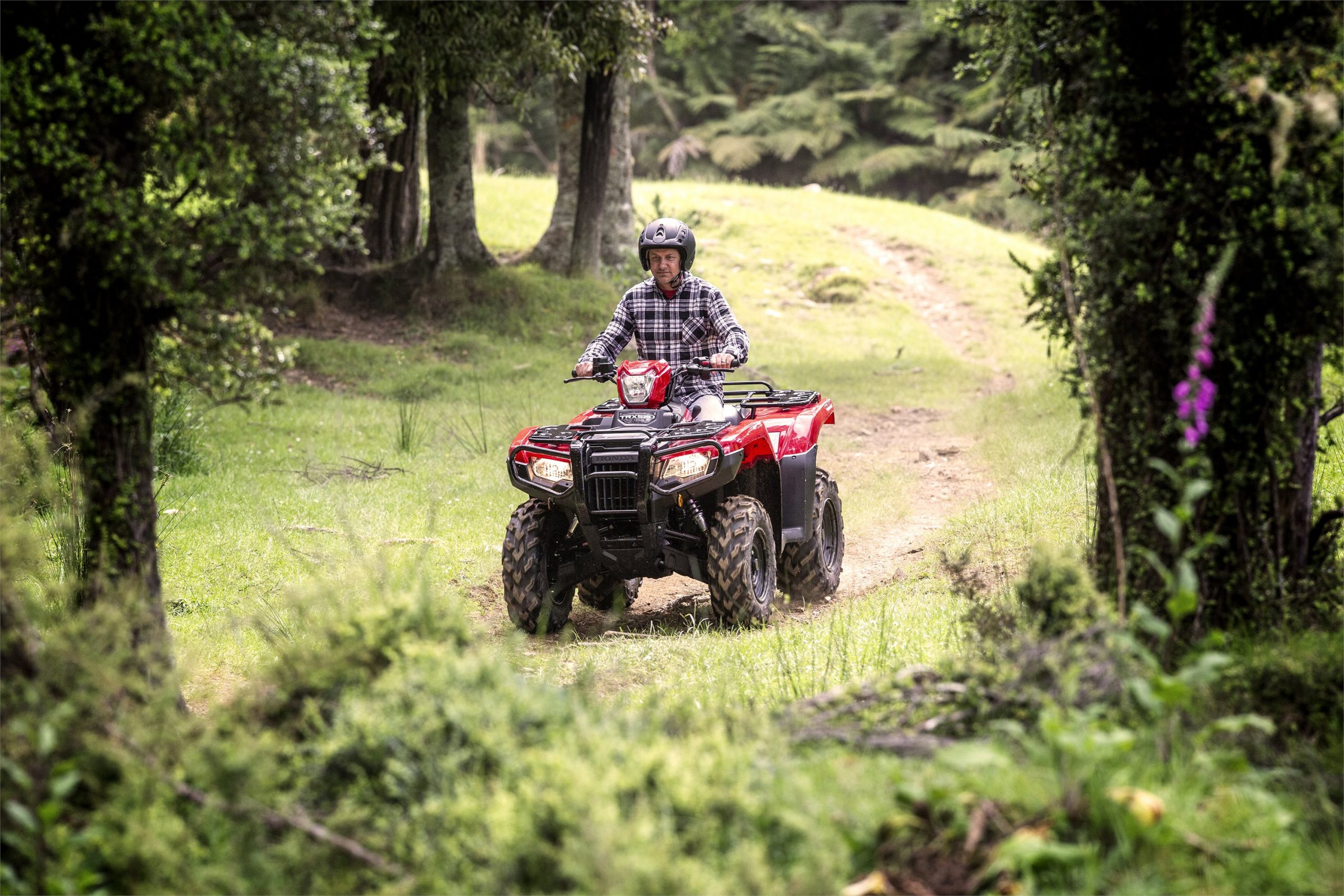

TRX520FA6 Power steer

Starting from $19,645 exc gst

The new boss is here.

The TRX520FA6 is Honda’s flagship ATV and with the new 518cc engine it now has even more power and torque to perform all the big tasks on farm. The exciting news though is a revised transmission which monitors engine rpm in real time to offer smooth, seamless shifting in auto mode.

The automatic dual-clutch transmission (DCT) features both automatic and manual modes, a hi-low range sub transmission and a new reverse switch to simplify the transition into and out of reverse. The improved engine RPM sensing system offers smoother and more seamless shifting between gears and there’s also an override capability to allow manual shifting even when in automatic mode – giving the rider a new level of control and making it possible to downshift on corner entry or upshift manually.

In the looks department, the FA6 sports a redesigned grill and front bumper for a more aggressive, stylised look. It also comes with a handy new utility box and new carry rack design. New guards extend the full length of the lower suspension arms for full coverage of the driveshaft and outboard CV joints for even more under body protection. With a front diff lock and massive 600kg towing capacity this bike is made to tackle the big jobs.

Enquire now Book test drive

Specifications

ENGINE

Engine Type

Liquid-cooled OHV longitudinally mounted single-cylinder, 4 stroke

CC Rating

518cc

Bore and Stroke

96.0mm x 71.5mm

Ignition

Full-transistorised with electronic advance

Fuel System

Programmed Fuel Injection (PGM-FI) 36mm throttle body

Compression Ratio

9.5:1

TRANSMISSION

Starter

Electric with auxiliary recoil standard

Final Drive

Direct front and rear driveshafts w/ TraxLok® and locking front differential

Transmission

Dual Clutch Automatic; 5-speed with reverse and High/Low

WHEELS, SUSPENSION & BRAKES

Suspension Front

Independent double wishbone – 185mm of travel

Suspension Rear

Independent rear suspension – dual arm – 215mm of travel

Brakes Front

Dual hydraulic – 190mm discs

Brakes Rear

Single hydraulic – 170mm disc

Tyres Front

25 x 8 – 12

Tyres Rear

25 x 10 – 12

DIMENSIONS & WEIGHT

Wheelbase

1,294mm

Seat Height

922mm

Ground Clearance

247mm

Kerb Weight

331kg

Fuel Capacity

14.7litres incl 4.9litres reserve

Dimensions

2185mm(L) x 1205mm(W) x 1237 mm(H)

Carrier Capacity

40kg Front rack – 85kg Rear rack

Towing Capacity

600kg

Enquire now

Features

Reverse Gear Actuation

An all-new reverse-gear actuation mechanism for the TRX520FA6 Foreman model makes shifting to reverse a one-lever, fully electronic operation that is quicker, simpler and easier for all hand sizes.

Manual Override

The all-new manual-override capability allows the rider to manually change gears even when in automatic mode. (The transmission reverts back to fully automatic mode after a few seconds.) This provides a new level of control, making it possible to downshift on corner entry or upshift manually.

Engine capacity

New larger displacement 518cc engine (a 43cc displacement increase) with updated mapping provides stronger power and torque where it’s used most—in the low end and midrange—for quicker acceleration, better ascending and improved hauling and towing.
