TRX520FM1

NOW ONLY $16,995 PLUS GST

This model is our dedication to offering a premiere no-compromise work ATV.

Equipped with a larger 518cc engine, the new TRX520FM2 is stronger, more powerful, and easier to use than its predecessor.

The new motor and updated mapping provides more power and torque where it’s used most – in the low end and midrange – to allow quicker acceleration, better ascending and improved hauling and towing.

The Honda TraxLok system allows you to move between 2WD and 4WD mode with just the flick of a switch. Front diff lock maximises traction over very rough terrain. The TRX520FM2 boasts new styling, an even more powerful assist headlight and increased storage compartments.

Elsewhere, the swing arm-style rear suspension is tried and proven on New Zealand farms, easily serviceable and with less moving parts it’s made for durable running in harsh conditions.

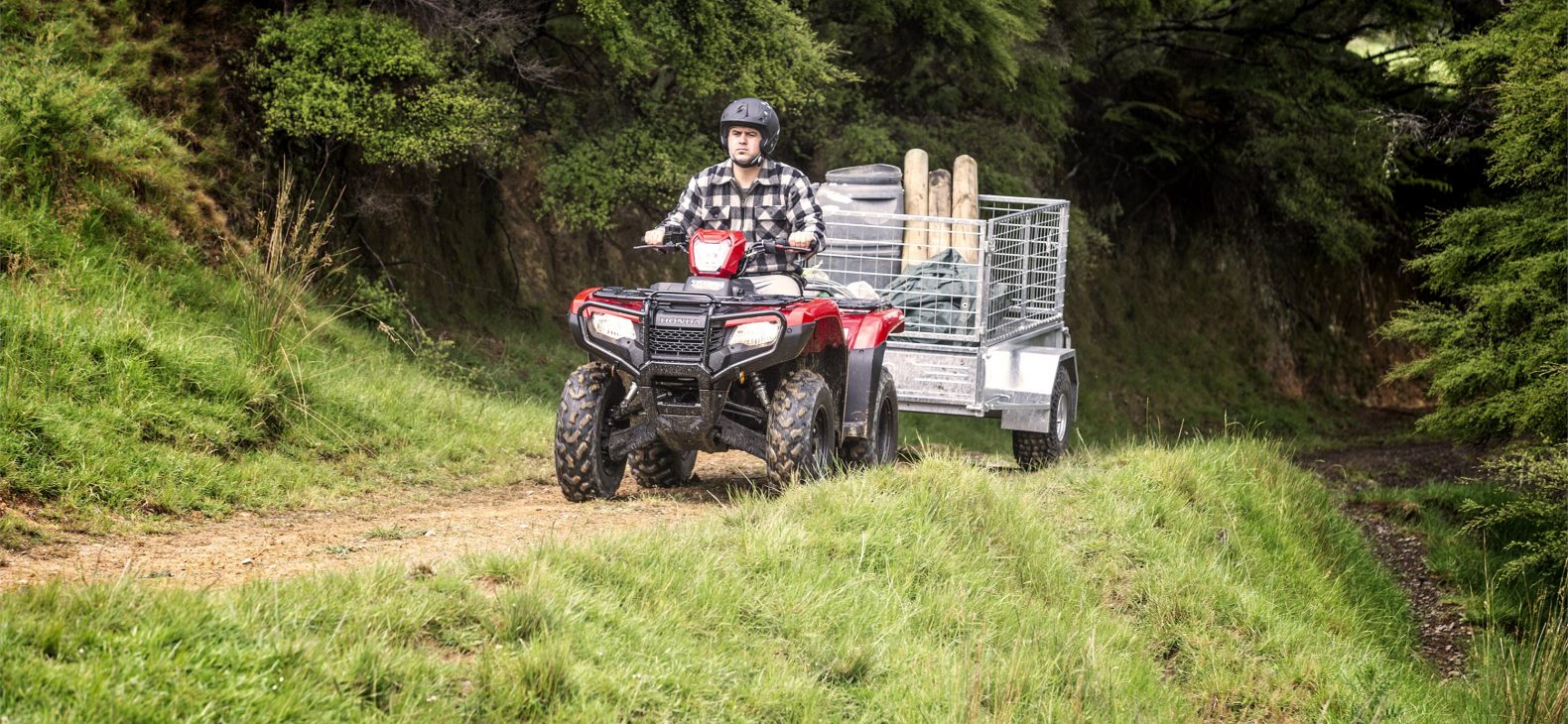

Towing is made more comfortable by moving the tow hitch onto the swing arm.

A bulletproof manual machine loved by Kiwis, the TRX520FM2 is set to become NZ’s new favourite ATV.

Enquire now Book test drive

Specifications

ENGINE

Engine Type

Liquid-cooled OHV longitudinally mounted single-cylinder, 4 stroke

CC Rating

518cc

Bore and Stroke

96.0mm x 71.5mm

Ignition

Full-transistorised with electronic advance

Fuel System

Programmed Fuel Injection (PGM-FI) 36mm throttle body

Compression Ratio

9.5:1

TRANSMISSION

Starter

Electric with auxiliary recoil standard

Final Drive

Direct front and rear driveshafts w/ TraxLok® and locking front differential

Transmission

Manual 5-speed with reverse

WHEELS, SUSPENSION & BRAKES

Suspension Front

Independent double wishbone – 185mm of travel

Suspension Rear

Swing arm with single shock – 185mm of travel

Brakes Front

Dual hydraulic – 190mm discs

Brakes Rear

Single sealed – 160mm mechanical drum

Tyres Front

25 x 8 – 12

Tyres Rear

25 x 10 – 12

DIMENSIONS & WEIGHT

Wheelbase

1,269mm

Seat Height

877mm

Ground Clearance

190mm

Kerb Weight

297kg

Fuel Capacity

14.7litres incl 4.9litres reserve

Dimensions

2106mm(L) x 1205mm(W) x 1213mm(H)

Carrier Capacity

40kg Front rack – 80kg Rear rack

Towing Capacity

385kg

Enquire now

Features

Utility Box

A 1.9-litre utility box with weatherproof cover is added to the front deck.

A Arm guards

New guards extend the full length of the lower suspension arms for full coverage of the driveshaft and outboard CV joints.

Engine capacity

New larger displacement 518cc engine (a 43cc displacement increase) with updated mapping provides stronger power and torque where it’s used most—in the low end and midrange—for quicker acceleration, better ascending and improved hauling and towing.
