$949 inc gst

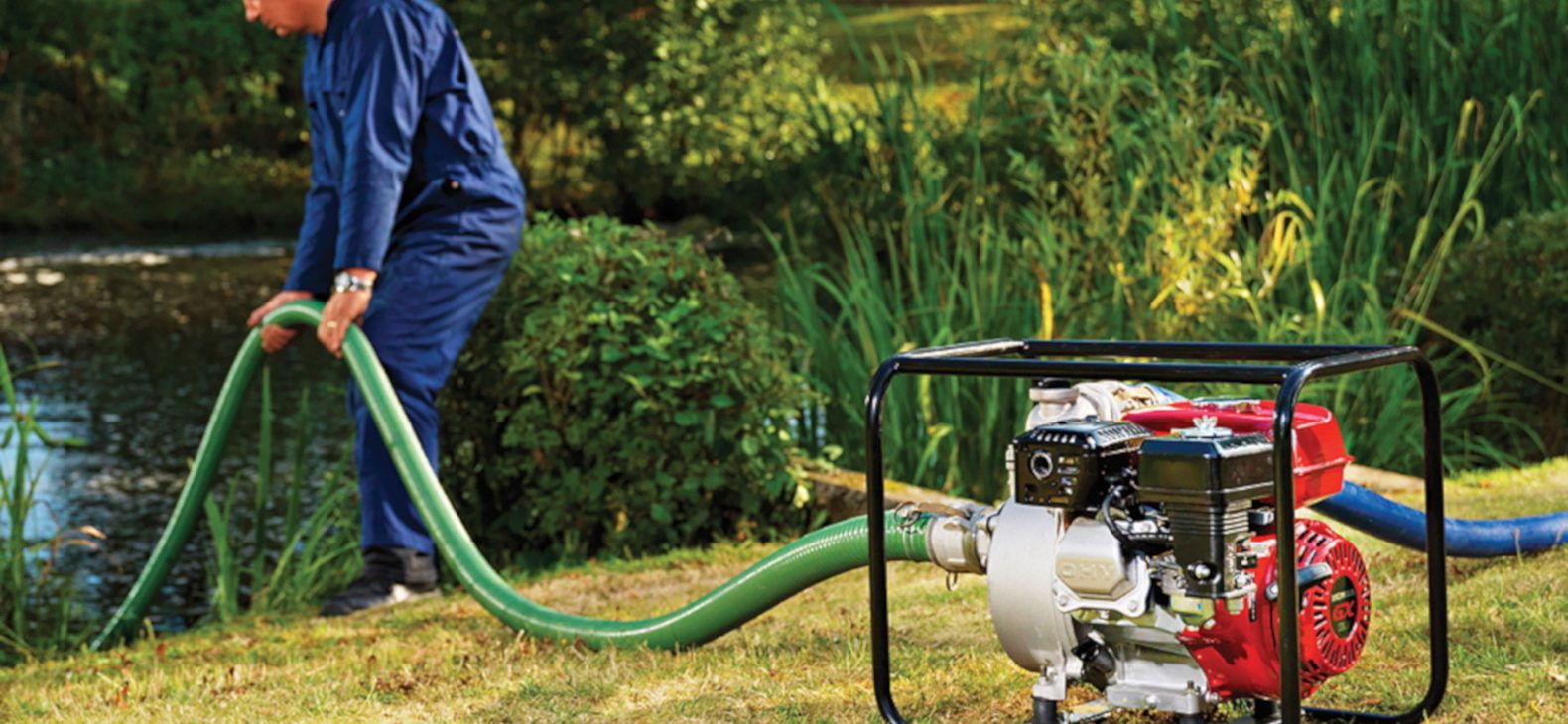

WB20 WATER PUMP
ENGINEERING EXPERTISE
Drawing on decades of engineering advancements, the Honda GX120 engine that powers the WB20 ensures easy starting, easy usage, outstanding fuel economy, low emissions and long-lasting durability.
With oil alert and rubber mounts, the full frame type provides stability and delivers smooth running with less vibration. The result is a reliable, long-lasting pump that will perform time after time.
PERFORMANCE
With capacity to deliver 600 litres per minute, this 2″ Volume Water Pump has a maximum suction head of 8m and a maximum total head of 32m. Like so many other Honda products, the WB20 starts first time, every time with Honda’s famous one pull easy start system.
It runs on unleaded fuel, so you’ll never have to mix oil and petrol again. The result? An environmentally-friendly pump with low emissions & fuel consumption.
Powerful output – Honda GX120 engine
Cast iron volute – Reduces case wear
Oil alert system – Shuts off engine when low oil is detected
Heavy duty full frame – Added Protection
Specifications
Engine
Product Code
WB20XT4DRXU
Pump Type
Centrifugal volume pump
Engine
GX120
Displacement
118cc
Oil Alert
Yes
Fuel
Unleaded
Performance
Total Head (m)
32
Suction Head (m)
8
Max Discharge Capacity
600 litres/min
Self Priming Time (at 5m)
110 sec
Fuel Consumption
1 l/hr
Mounting
Rubber
Hose Band/Stainer
Yes
Dimensions, Weights and Capacities
Fuel Tank Capacity
2.5l
Discharge Port Diameter (mm)
50
Suction Port Diameter (mm)
50
Length (mm)
455
Width (mm)
365
Height (mm)
420
Dry Weight (kg)
21
